We are a trusted manufacturer and supplier of high-quality Oxygen Gas Plants, delivering reliable and efficient gas generation solutions to a wide range of industries. With a strong commitment to innovation and customer satisfaction, we continuously enhance our products through ongoing research and development initiatives. Our advanced manufacturing capabilities, technical expertise, and focus on quality enable us to provide oxygen plants that offer superior performance, energy efficiency, and long-term operational reliability.

Features

• Easy installation and commissioning.
• Fully automatic air cooled design Rotary Air Compressor.
• Cryogenic expansion of air for cooling via Expansion Turbines.
• No special civil foundation required for any part of the plant.
• Hydrocarbon vapor level reduced below 0.003 PPM to ensure safe operation.

• Capacity: UBP- 50 M3/Hour to 2000 M3/Hour

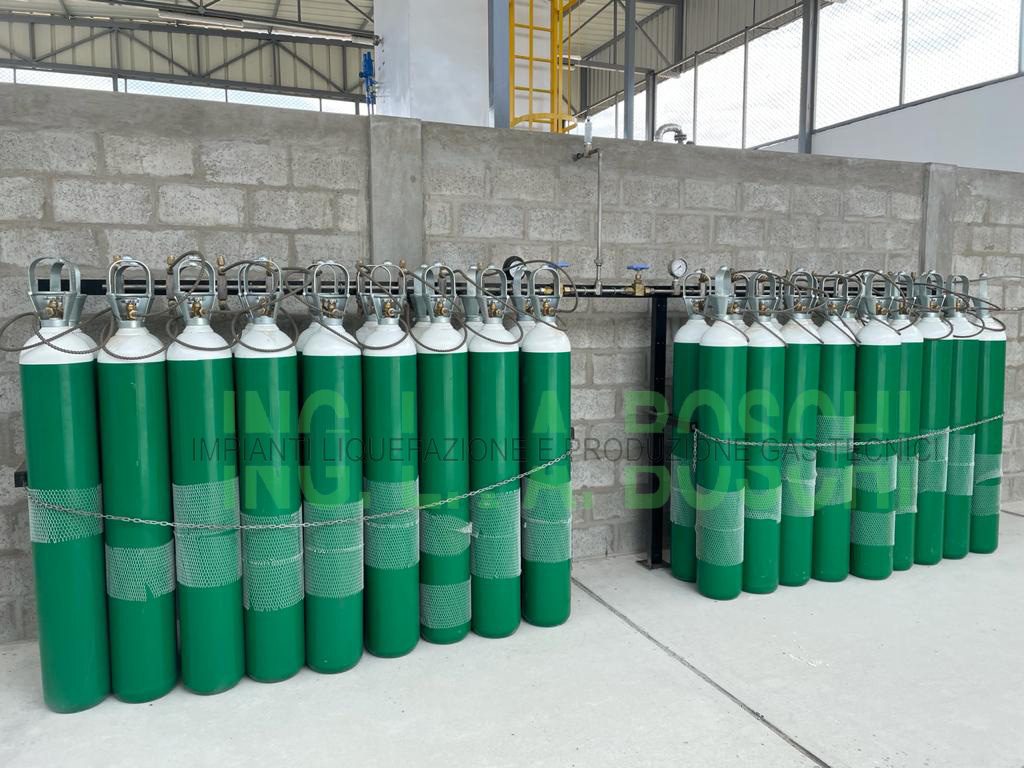

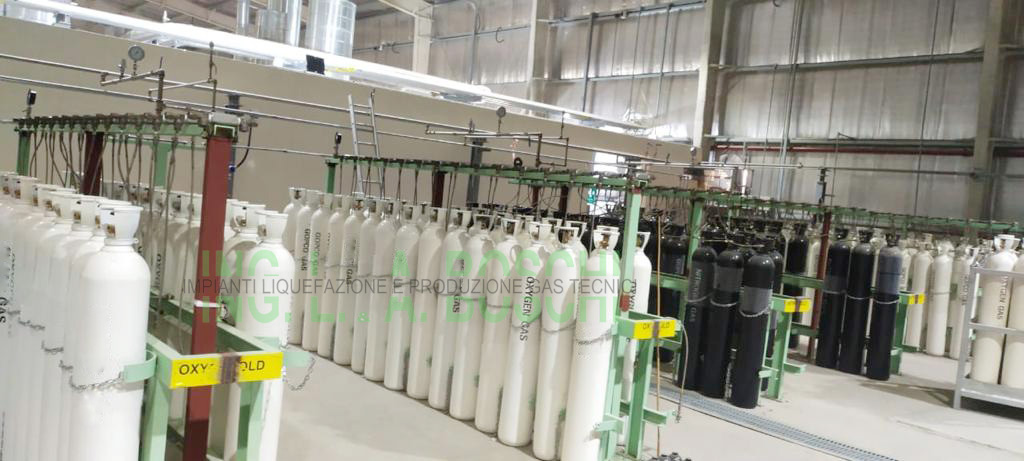

• Output: 200 to 8000 Cylinder Filling/Day
• Purity: OXYGEN- 99.7%

Scope and Supply

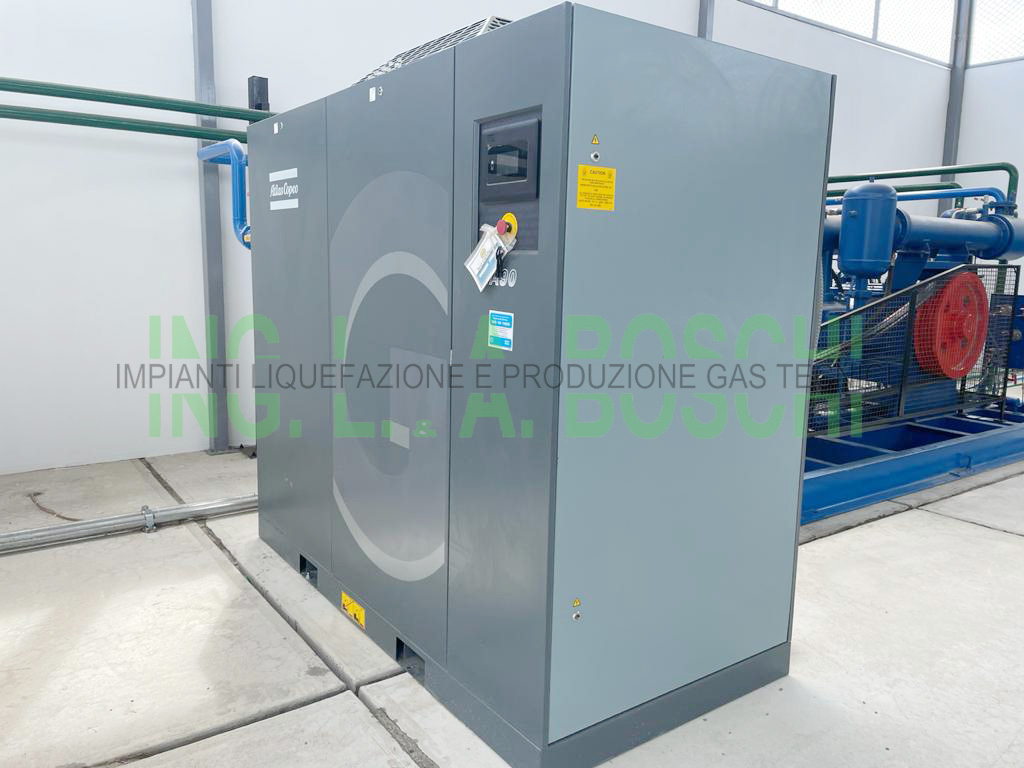

1. Air Compressor : Rotary air compressor screw type can be employed for smaller size plants upto 50 m3/hr  to 1000m3/hr.
2. Air Pre Cooling System : Air separation plants adopt chilling system in all air pre-Cooling systems.

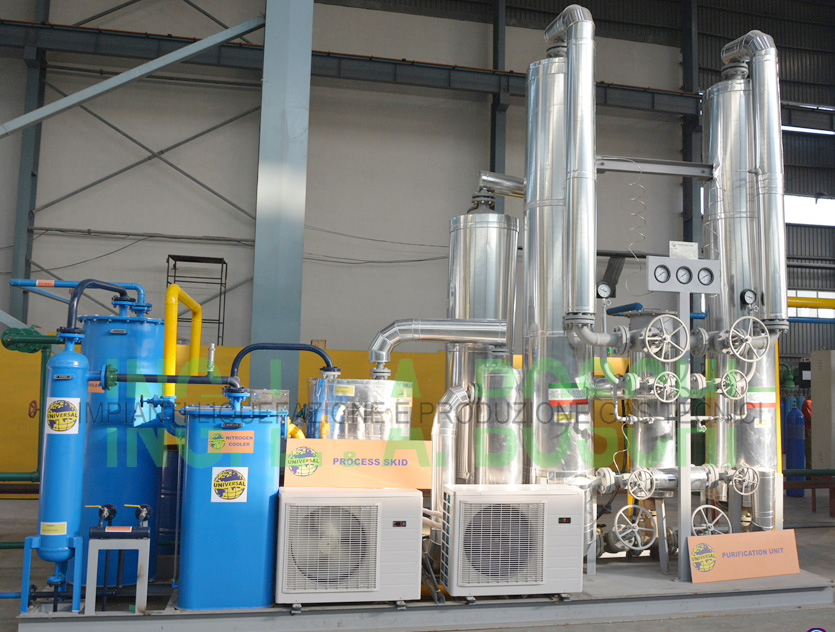

3. Air Purification System : In this system, molecular sieve are used in the air purification system to remove the CO2 & moisture for the process air at low- Pressure.

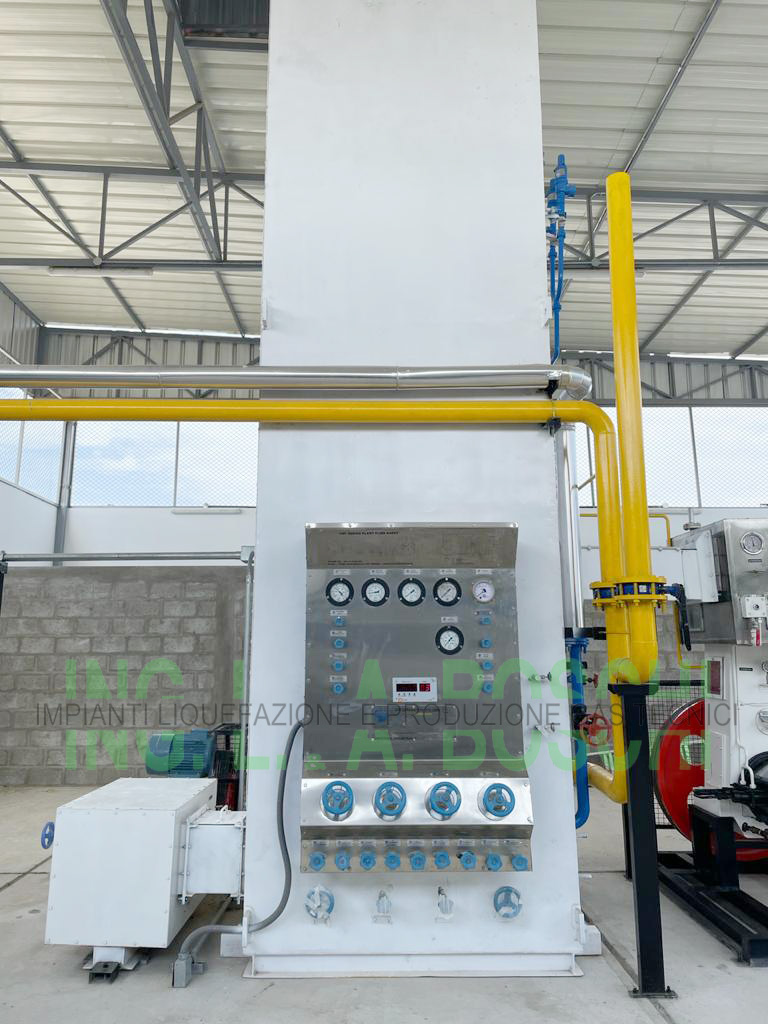

4. Rectification Column : The unit in cold box is all low pressure technology. This unit employs the latest state of the art plate & fin exchanger, condenser and sub - coolers. The column is supplied as a packed unit complete with all the control systems including digital flow- meters, temperature, pressure available with high purity upto 2-3 ppm nitrogen as a second product without loss in oxygen Production.
5. Turbo-Expander : Turbo - Expander is employed for giving cooling to the air for the liqefication process and braked by booster, so as to diminish the expanded air volume, stabilize the upper columns working condition and reduce power consumption. The turbine expanders have complete trouble free working and long life and reliability.
6. Computer Control : All the plants can be configured for automatic operation through a pc this will use a out switching valves of German or Japanese And motorized cryogenic valves on cold box.
