Oxygen & Nitrogen Gas Plant

Oxygen & Nitrogen Gas Plant

Capacity: UBP- 30 M3/Hour to 1500 M3/Hour

Output: 100 to 6000 Cylinder Filling/Day

Purity: OXYGEN- 99.7% & NITROGEN- 99.99%

Applications: Medical & Industrial Uses, Mining, Gold Leaching, Steel Plants

Share On:

Description

We are manufacturing and exporting of Oxygen/Nitrogen Gas Plants, which are technologically very advanced. Our oxygen/nitrogen gas plants are being manufactured and supplied as per the latest technology & design of the Company ING. L. & A., BOSCHI, ITALY since 1930. This technology has been proven all over the world for its working efficiency & trouble free operation.

^{Production Process Oxygen Nitrogen Plants}

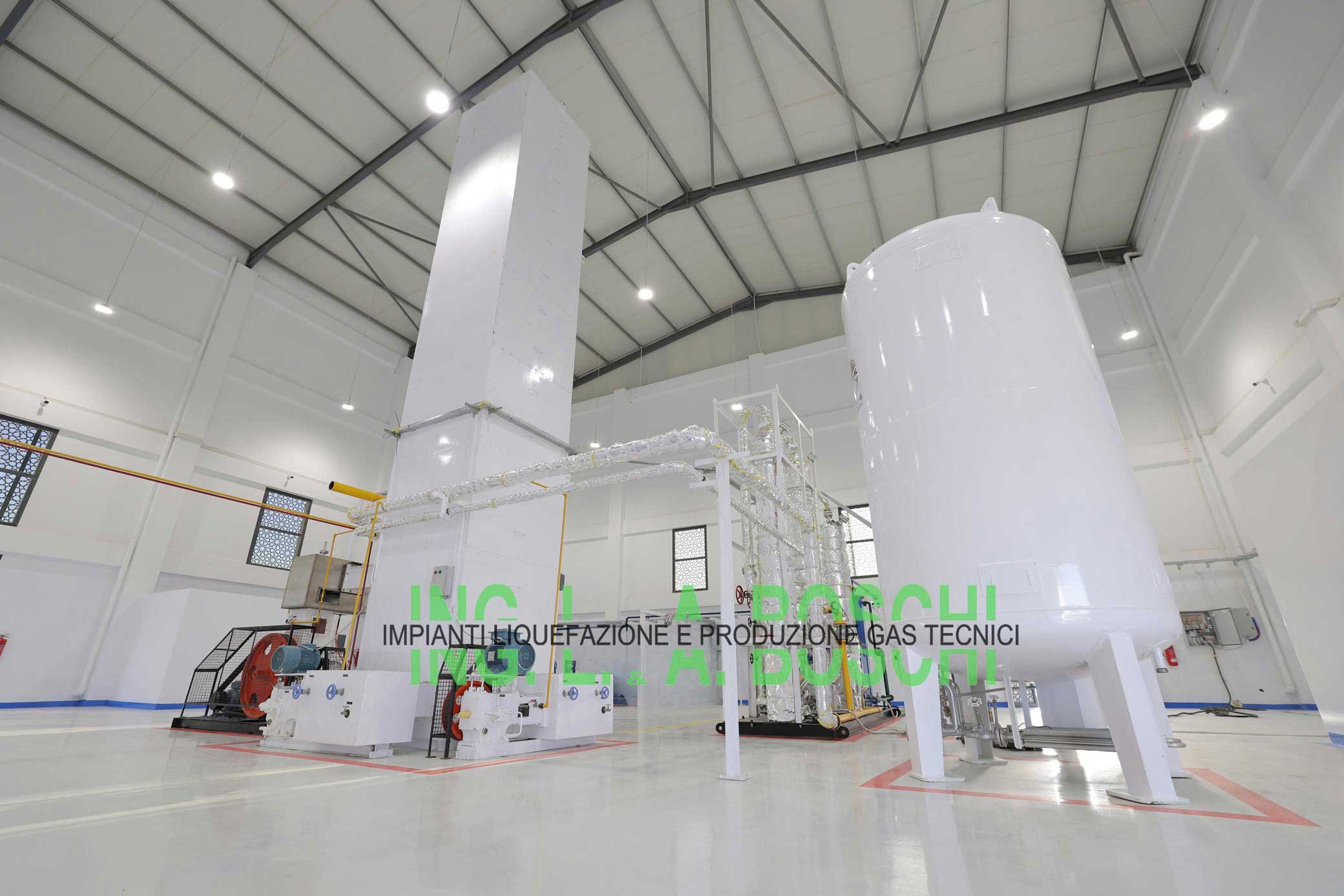

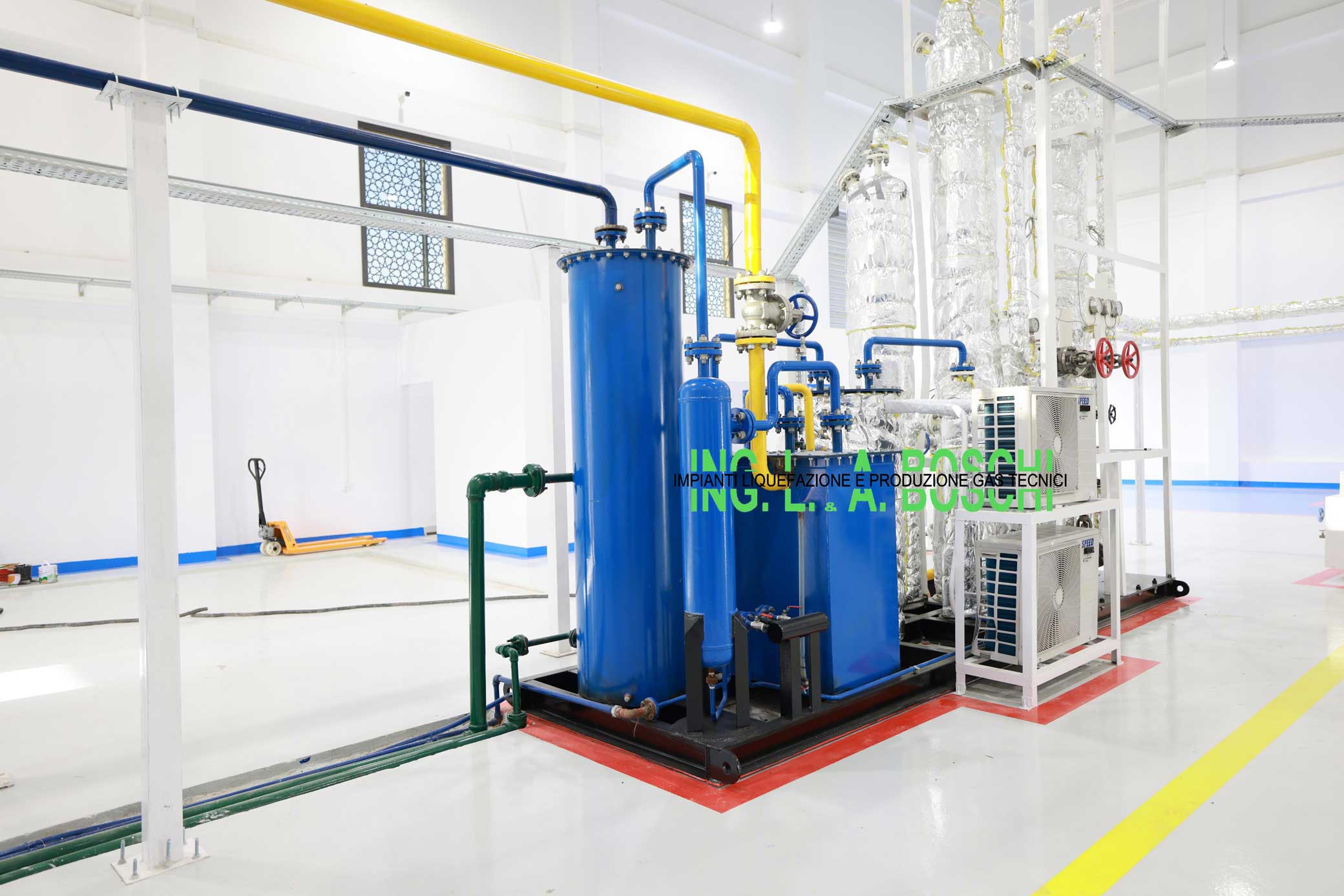

Our Oxygen/Nitrogen Plants recovers oxygen and nitrogen from air simultaneously via Low pressure cryogenic Distillation process. Its design is based on the advanced low pressure technology process of Boschi Italy using rotary screw compressor and turbo expanders. The feed air enters the Molecular Sieve purification system employed to remove the moisture and C02 from the process air. The air is liquefied by cryogenic cooling using latest plate and fin high efficiency heat exchangers and turbo expanders. The liquid air separates into liquid oxygen & liquid nitrogen in the air separation column with final product being stored into liquid tanks at the desired pressure.

Special Features of UNIVERSAL BOSCHI Oxygen Plants:

With Life of Minimum 30++ Years -For Safety -Trouble Free Working - Fabricated By Skilled Technicians.
Supervised By Qualified and Experienced Engineers Employed and Trained for Last 40 Years by ING. L&A. BOSCHI Italy.
Remember Quality Comes With Experience Universal Has Experience of 40 Years.
Backed By 90 Years of Expertise, Technical Know-how, Designs & Drawings By BOSCHI Italy Since 1930.
Proven Performance of 4 decades for Universal Boschi cryogenic Oxygen Nitrogen Plants Now Over since 1985
In Extreme climatc cnditions upto 55 degree in hot summer of middle east ,the plants are operating contiuously.
Quick Start System Technology enables the plant to come back in prduction within few minutes due to power cuts prevailent .

UNIVERSAL BOSCHI specializes in Air & Gas Separation Technologies since 1985, Manufactures and Proposes a wide range of Oxygen Nitrogen Plants, based on the Cryogenic Technology to produce high purity Oxygen in liquid and gas form both.

Specification

Capacity : 30 to 2000 m3/hour
Output :120 to 8,000 Cylinders/Day
Purity : OXYGEN - 99.7% & NITROGEN -99.99%
Pressure : 150 - 200 Bar

Salient Features of UBP Series New Technology Oxygen Plant

High Purity Oxygen for Industrial and Medical grade.
Rotary Automatic Air compressor (Air cooled - Hence Heavy saving of Water)
Skid mounted & easy to install.
100% cryogenic grade stainless steel; hence oxygen produced is 100% medical oxygen suitable as per American/European pharmacopeia & industrial uses like cutting/welding etc.

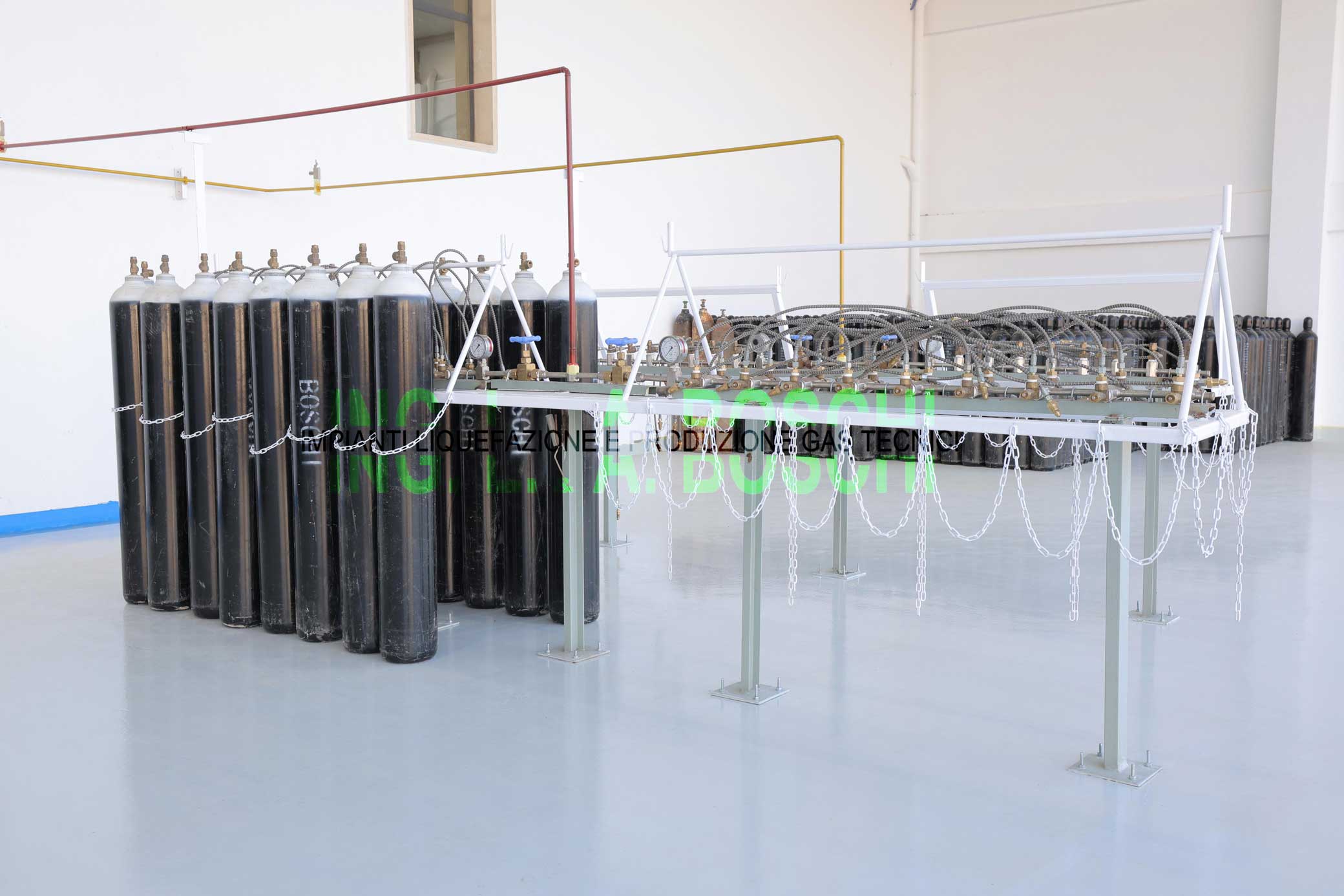

Liquid oxygen pump technology for filling high purity oxygen in cylinders at 150 to 200 Bar.
Low Power consumption
Quick start system ensures faster production after power tripping.

MODEL	CAPACITY IN M3/HOUR	NUMBER OF CYLINDERS PER DAY	PURITY OF OXYGEN	PRESSURE
UBP-30	30	120	99.7%	150-200 BAR
UBP-50	50	200	99.7%	150-200 BAR
UBP-80	80	300	99.7%	150-200 BAR
UBP-100	100	400	99.7%	150-200 BAR
UBP-130	130	500	99.7%	150-200 BAR
UBP-150	150	600	99.7%	150-200 BAR
UBP-170	170	700	99.7%	150-200 BAR
UBP-300	300	1200	99.7%	150-200 BAR
UBP-400	400	1600	99.7%	150-200 BAR
UBP-500	500	2000	99.7%	150-200 BAR
UBP-600	600	2400	99.7%	150-200 BAR
UBP-1000	1000	4000	99.7%	150-200 BAR
UBP-1500	1500	6000	99.7%	150-200 BAR
